VDP::Record Class Reference

#include <types.hpp>

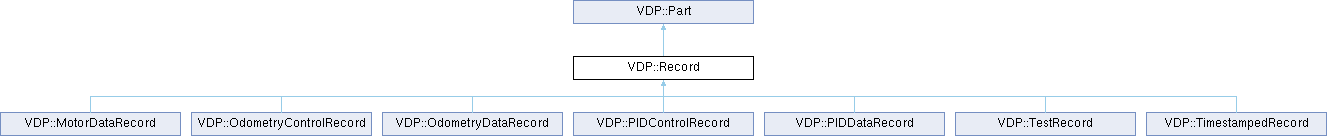

Inheritance diagram for VDP::Record:

Public Member Functions
	Record (std::string name)
	Record (std::string name, const std::vector< Part * > &parts)
	Record (std::string name, std::vector< PartPtr > parts)
	Record (std::string name, PacketReader &reader)
void	set_fields (std::vector< PartPtr > fields)
void	fetch () override
void	read_data_from_message (PacketReader &reader) override
Public Member Functions inherited from VDP::Part
	Part (std::string name)
std::string	pretty_print () const
std::string	pretty_print_data () const

Protected Member Functions
void	write_schema (PacketWriter &sofar) const override
void	write_message (PacketWriter &sofar) const override

Detailed Description

Defines a Part that contains another Part essentially an array of parts that is formatted so that it can be sent to the debug board

Constructor & Destructor Documentation

Record() [1/4]

VDP::Record::Record ( std::string name )

explicit

Creates a Record with just a name a Record is essentially an array of parts that is formatted so that it can be sent to the debug board

Parameters

name	the name for the part

Record() [2/4]

VDP::Record::Record	(	std::string	name,
		const std::vector< Part * > &	parts )

Creates a Record with a name that contains the Parts inside a vector of Parts a Record is essentially an array of parts that is formatted so that it can be sent to the debug board

Parameters

name	the name for the part
parts	the vector of Parts for the record to hold

Record() [3/4]

VDP::Record::Record	(	std::string	name,
		std::vector< PartPtr >	parts )

Creates a Record with a name that contains the Parts inside a vector of Part Pointers a Record is essentially an array of parts that is formatted so that it can be sent to the debug board

Parameters

name	the name for the part
parts	the vector of Part Pointers for the record to hold

Creates a Record with a name that contains the Parts inside a vector of Part Pointers a Record is essentially an array of parts that is formatted so that it can be sent to the debug board

Parameters

name	the name for the Record
parts	the vector of Part Pointers for the record to hold

Record() [4/4]

VDP::Record::Record	(	std::string	name,
		PacketReader &	reader )

Creates a record with a name based off of a packet read by a PacketReader a Record is essentially an array of parts that is formatted so that it can be sent to the debug board

Parameters

name
reader

Member Function Documentation

fetch()

void VDP::Record::fetch ( )

overridevirtual

sets the values of each Part the Record contains

Implements VDP::Part.

Reimplemented in VDP::TimestampedRecord.

read_data_from_message()

void VDP::Record::read_data_from_message ( PacketReader & reader )

overridevirtual

writes a message to the packet containing part record

Parameters

sofar

the PacketWriter to write with

Implements VDP::Part.

set_fields()

void VDP::Record::set_fields

(

std::vector< PartPtr >

fs

)

sets the Record to contain Parts from a part Pointer

Parameters

fs	the vector of Part Pointers for the record to hold

write_message()

void VDP::Record::write_message ( PacketWriter & sofar ) const

overrideprotectedvirtual

writes a message to the packet containing part record

Parameters

sofar

the PacketWriter to write with

Implements VDP::Part.

write_schema()

void VDP::Record::write_schema ( PacketWriter & sofar ) const

overrideprotectedvirtual

writes the Record as the

Implements VDP::Part.

---

The documentation for this class was generated from the following files:

• types.hpp
• types.cpp
